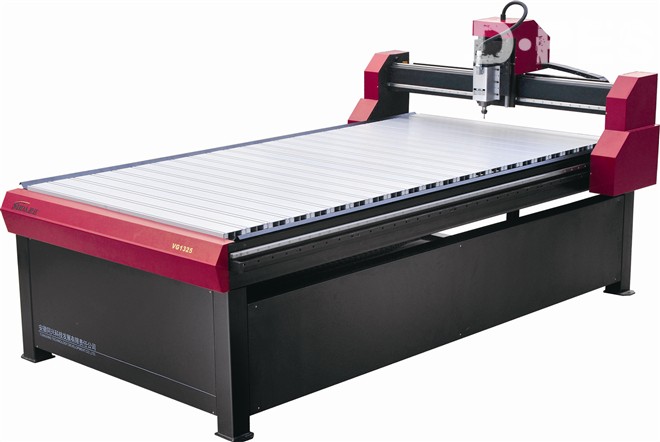

Model
|
VG2030
|
|
XY Guide
|
THK linear rail from Japan
|
|
Z Guide
|
THK linear rail from Japan
|
|
XYZ movement (mm)
|
2000 x 3000 x 150
|
|
Spindle power
|
3000W
|
|
Spindle speed (min/max)
|
0 - 18000 RPM/Min.
|
|
Machine overall dimension (mm)
|
3750*2750*1750
|
|
Gross Weight (kg)
|
About 1880 KG
|
|
Speed max.
|
25000mm/min
|
|
Stepper or servo motor?
|
Stepper motor (standard), Servo motor (optional)
|
|
XYZ accuracy
|
0,04mm
|
|
Reposition accuracy
|
0,01mm
|
|
XY resolution
|
0,01mm
|
|
Z resolution
|
0,01mm
|
|
Table surface
|
Aluminium
|
|
XY drive configuration
|
Rack & pinion
|
|
Z drive configuration
|
Rack & pinion
|
|
Included Software
|
Type3 V4.3 English
|
|
Software Compatible with
|
Win98/Win2000/XP
|
|
Spindle cooling system
|
Fan cooling
|
|
Spindle collet
|
ER25
|
|
Software transmission language
|
G-Code
|
|
Interface
|
Transimt the file from DSP control handle or from USB flash disk directly.
|
|
Voltage
|
AC 220V Single Phase /AC380V Three Phases, 50/60Hz
|
|
Running environment
|
0-35°C, humidity: 10-70%
|
|
Max. thickness of material
|
160mm
|
|
Software compatibility
|
ARTCAM, Type3, Casmate, Proe, UG, Artgrave ect.
|
|
Warranty
|
14 months since shipping date
|
|
application
|
Wood working, Advertising technology, model making, electrical engineering, industry, outdoor advertising, engraving technology, illuminated advertising ect.
|
