Machine frame
|
Cast iron body, aging treatment, more thickness steel material, much more solid and stronger
|
Electrical control cabinet
|
Independent electrical control cabinet, much more safety, user friendly
|
Controller Programm
|
FPGA colored LCM control handle cooperation with 2GB inner memory capacity, support USB Flash Disk transmitting directly, no memory capacity limit, has more function of restoring from power off, continue working on break point during working, working time anticipation etc.
|
|
Lead transmitting parts
|
X,Y, Z--Rolling ball screw from Germany
|
|
Lead transmitting guide
|
X,Y,Z- international advanced rail
|
|
Motion Speed
|
6000~15000mm/min
|
|

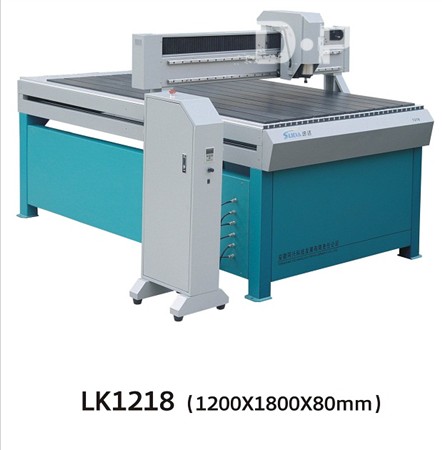

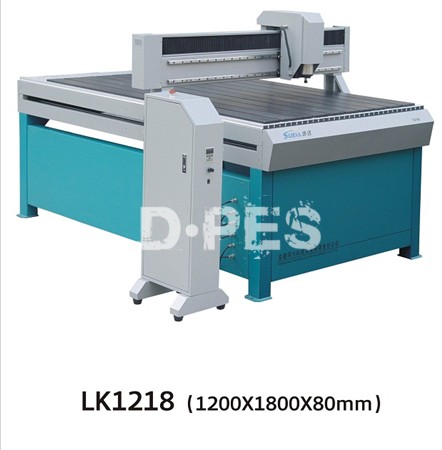

xyz Working stroke
|
1200 mm x 1800 mm x 80 mm
|
|
Max. thickness of material
|
100mm
|
|
xyz resolution
|
0,01 mm
|
|
Software compatibility
|
ARTCAM, Type3, Casmate, Proe, UG, Artgrave ect.
|
|
Software free of charges
|
Original Type3 3D Engraver version
|
|
Dictate format
|
HPGL, G-code
|
|
Warranty
|
14 months since shipping date
|
|
Technical characteristics
|
|
Power of Mainshaft
|
2200W constant power inverter driven spindle motor cooled by water
|
|
Speed of Mainshaft
|
0~24000 RPM /min
|
|
Diameter of cutter
|
3.175, 6 mm (optional)
|
|
Cooling
|
water-cooled cutter (optional)
|
|
application
|

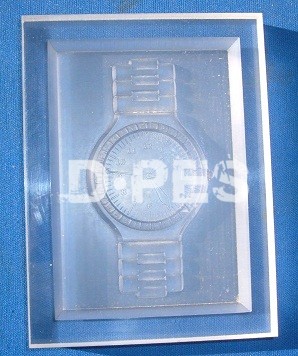

Wood working, Advertising technology, model making, electrical engineering, industry, outdoor advertising, engraving technology, illuminated advertising etc.
|
|
Power supply
|
AC220 ±10% 50HZ, AC380 ±10% 50HZ
|
|
Power consumption
|
4500 W
|
|
Physical characteristics
|
|
Measures (+package)
|
1780 x 1760 x 1750 mm
|
|
Weight (+Package)
|
420 kg
|
|
