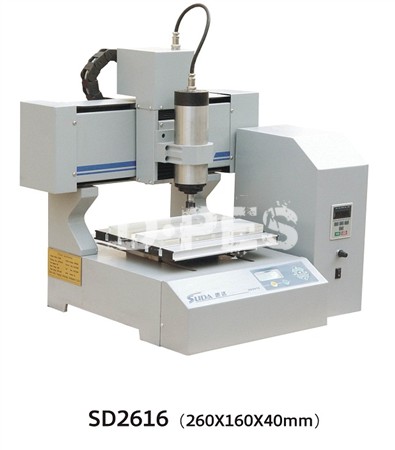

Model
|
SD2616
|
|
XY Guide
|
International advanced round rail
|
|
Z Guide
|
International advanced round rail
|
|
XYZ movement (mm)
|
260 x 160 x 40
(260*unlimited*40) when configured with rotary device)
|
|
Spindle power
|
800W inverter driven spindle motor
|
|
Spindle speed (min/max)
|
6000 - 24000RPM
|
|
Machine body dimension (mm)
|
520*450*580
|
|
Packing size of machine body (mm)
|
620*550*680
|
|
Weight (kg)
|
75KG
|
|
Speed max.
|
0-70mm/s
|
|
Working speed max.
|
70mm/s
|
|
Stepper or servo motor?
|
Stepping motor
|
|
XYZ accuracy
|
0,04mm
|
|
Reposition accuracy
|
0,01mm
|
|
XY resolution
|
0,025mm
|
|
Z resolution
|
0,025mm
|
|
Table surface
|
Aluminium and acrylic
|
|
XY drive configuration
|
Rolling ball screws from Germany
|
|
Z drive configuration
|
Rolling ball screws from Germany
|
|
Included Software
|
Type3 V4.3 english
|
|
Software Compatible with
|
Win98/Win2000/XP
|
|
Spindle coolin system
|
water cooled
|
|
Spindle collet
|
ER11
|
|
Software transmission language
|
G-Code, HPGL
|
|
Interface
|
Transimt the file from the computer directly
|
|
Voltage
|
220VAC/50-60Hz
|
|
Running environment
|
0-35°C, humidity: 10-70%
|
