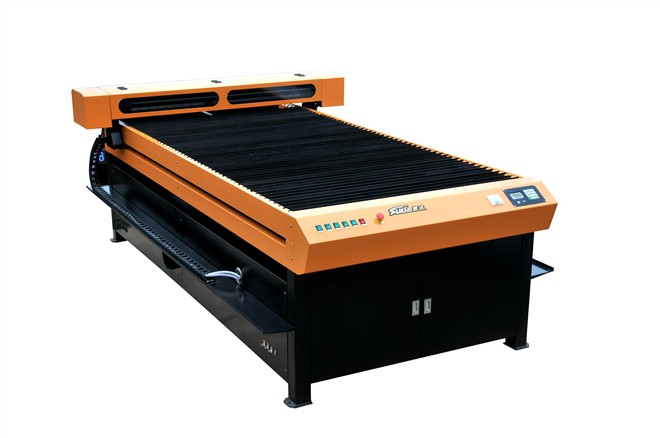

Product Name:Suda SL2030 Laser Machine

Product Details:
Select Payment and Shipping Terms:
Min. Order Quantity:
0 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /Set
Shipping Terms:
Shippment Port:
Shanghai, China
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets per Month
Delivery Time:
solid plywood packing suitable for sea shipment

Detailed Product Description:

3. Technical Data:



Model: SL2030

1) Cutting area: 2000 x 3000mm

2) Whole machine size: 3660 x 2750 x 1180mm

3) Laser power: 80W

4)Cutting speed: 0 - 24,000mm/min

5) Resetting positioning accuracy: 0.01mm

6) max cutting speed:  200mm/sec

7) max engraving speed:  2000mm/sec

8) Power supply: AC 110 - 220V , 50 / 60Hz

9) Gross power: <1,000W

10) Operating temperature: 0 - 45C

11) Operating humidity: 8 - 95%

12) Minimum shaping character: 1 x 1mm

13) Graphic format supported: BMP, HPGL, PLT, DST, DXP, and AI

14) Driving system: stepper.  (S model is configured with servo motor)

15) Cooling mode: water-cooling and protection system.

16)Controlling software : DSP control system.

17)Compatible software: CorelDraw AutoCAD Photoshop.

18)Laser- type: Sealed CO2 laser tube.

19)Net Weight: about : 580kg

20)Gross Weight: about : 680kg

21) Packing size: 3750 x 2300 x 1190mm--- machine body,     2650x700x500mm---- machine gantry
