Product Name:ENGRAVING MACHINE

Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /Set
Shipping Terms:
1
Shippment Port:
Shanghai, China
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets per Month
Delivery Time:
Packaging:
plywood packing suitable for sea shipment

Detailed Product Description:

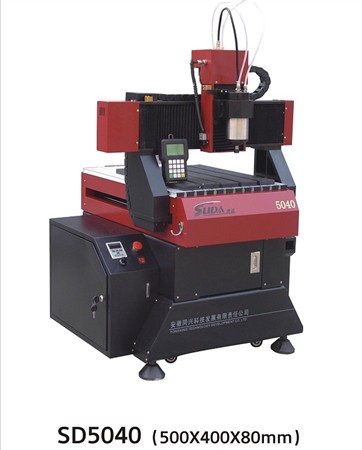

Datasheet of SD5040

Model

SD5040

XY Guide

International advanced round rail

Z Guide

International advanced round rail

XYZ movement (mm)

500 x 400 x 80

Spindle power

1500W

Spindle speed (min/max)

6000 - 24000 U/Min.

Machine overall dimension (mm)

880*810*1230

Packing size of machine (mm)

1030*960*1380

Weight (kg)

280KG

Speed max.

0-12000mm/min

Working speed max.

6000mm/min

Stepper or servo motor?

Stepper motor

XYZ accuracy

 0,04mm

Reposition accuracy

 0,01mm

XY resolution

 0,01mm

Z resolution

 0,01mm

Table surface

Aluminium  and PVC

XY drive configuration

Rolling ball screws

Z drive configuration

Rolling ball screws

Included Software

 Type3 V4.3 English

Software Compatible with

 Win98/Win2000/XP

Spindle cooling system

 water cooled

Spindle collet

ER11B

Software transmission language

 G-Code, HPGL

Interface

Transimt the file from DSP control handle or from USB flash disk directly.

Voltage

AC 220V Single Phase  50/60Hz

Running environment

 0-35°C, humidity: 10-70%
