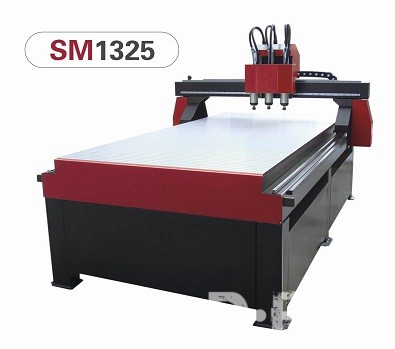

Product Name:SUDA SM1325 WOOD WORKING DOOR PROCESSING ATC MACHINE

Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /Set
Shipping Terms:
1
Shippment Port:
Shanghai, China
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets per Month
Delivery Time:
Packaging:
solid plywood suitable for sea shipment

Detailed Product Description:

Datasheet of SM1325

Model

SM1325

XY Guide

Top quality linear rail

Z Guide

Top quality  linear rail

XYZ movement (mm)

1300 x 2500 x 200

Spindle power

3pcs of 3kw air cooling spindle motor

Spindle speed (min/max)

0 - 18000 RPM/Min.

Machine overall dimension (mm)

3450*2280*1980

Gross Weight (kg)

About 2180 KG

Speed max.

35000mm/min

Stepper or servo motor?

Stepper motor (standard), Servo motor (optional)

XYZ accuracy

0,04mm

Reposition accuracy

0,01mm

XY resolution

0,01mm

Z resolution

0,01mm

Table surface

Aluminium

XY drive configuration

Rack & pinion

Z drive configuration

Rack & pinion

Included Software

Type3 V4.3 English

Software Compatible with

Win98/Win2000/XP

Spindle cooling system

Fan cooling

Spindle collet

ER25

Software transmission language

G-Code

Interface

Transimt the file from DSP control handle or from USB flash disk directly.

Voltage

AC 220V Single Phase /AC380V Three Phases, 50/60Hz

Running environment

0-35°C, humidity: 10-70%

Max. thickness of material

210mm

Software compatibility

ARTCAM, Type3, Casmate, Proe, UG, Artgrave ect.

Warranty

14 months since shipping date

application

Wood working, Advertising technology, model making, electrical engineering, industry, outdoor advertising, engraving technology, illuminated advertising ect.
